Purpose-built shelter for active environmnents.
Barrel Vault structures provide a simple, efficient solution for covering large open areas where full enclosure is not required. Defined by their curved roof geometry, these systems are engineered for durability, adaptability, and cost-effective delivery.
Tell us about your project and our team will be in touch.
an introduction to Barrel Vault
Key Capabilities
Purpose-built for active spaces.

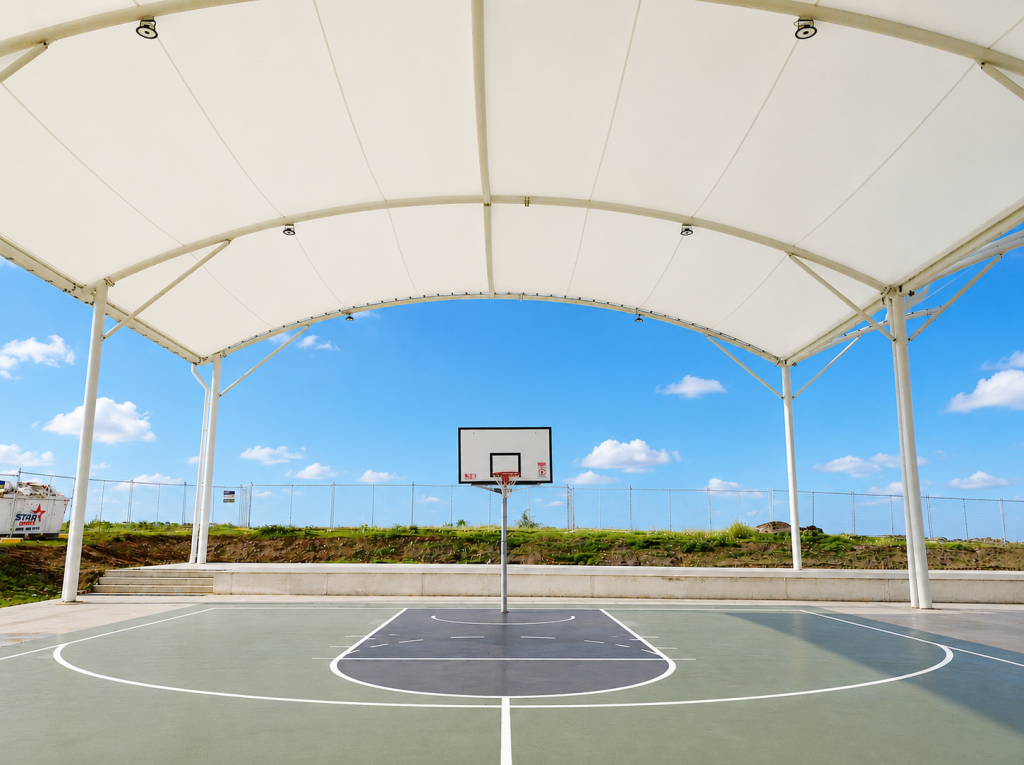

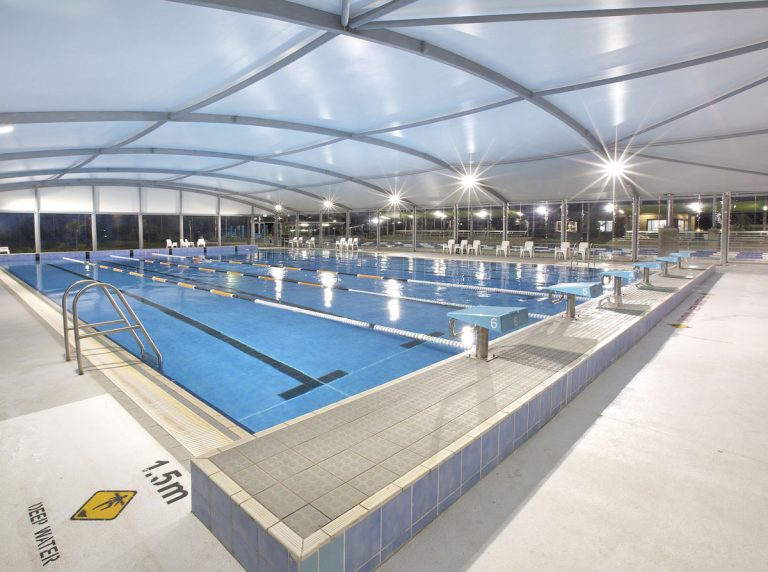

Engineered for sports courts, aquatic centres, school playgrounds, and recreational spaces, environments where reliable shelter matters more than full enclosure. Maintains openness, ventilation, and natural light while keeping the rain, sun, and weather out.
Four Standard spans.
Project-specific lengths. 15m, 20m, 30m, and 40m clear spans, with length configurable to your site. Standardisation drives faster engineering and more efficient material use, without sacrificing structural performance.
Adaptive clearance for any sport, court, or pool.
Three height options – 4m, 6m, or 8m – designed around the use beneath. Sized for everything from public shade to full-court basketball and competition aquatic facilities.
A curved roof that's working harder than it looks.
The barrel-vault geometry distributes structural loads efficiently while delivering a clean, contemporary form. Less steel, more daylight, no compromise on strength.
Open canopy or fully enclosed.
Default to an open-canopy structure for maximum airflow and natural light. Add doors, cladding, ventilation, insulation, and lighting to convert to a fully enclosed building when your structure needs change.
Premium materials. proven lifespan.
S355 hot-dip galvanised steel with a 50-year design life. Premium Serge Ferrari 702 | S2 PVC fabric with a 25+ year design life. Same materials, same warranties, same standards, applied to a structure sized for its specific job.
View the specifications
View the specifications
Where car park structures perform
Applications
Typical applications for Car Park systems across multiple industries.
Standard geometry
Configurations.
Barrel Vault systems are available in a range of standardised spans, with flexible length configurations.

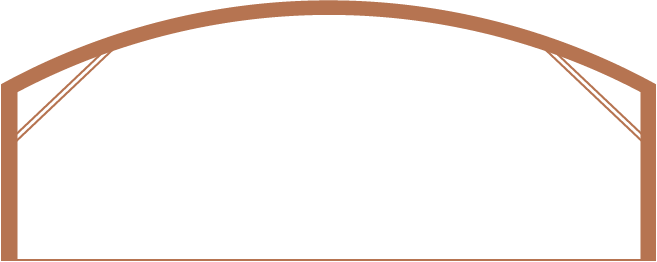

15m

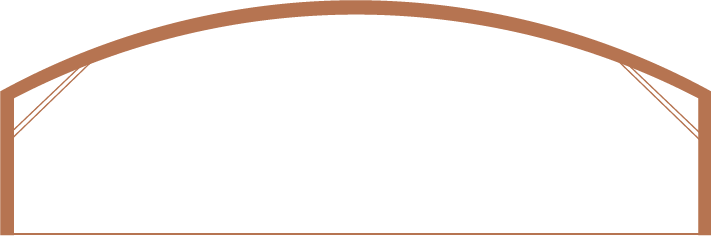

20m

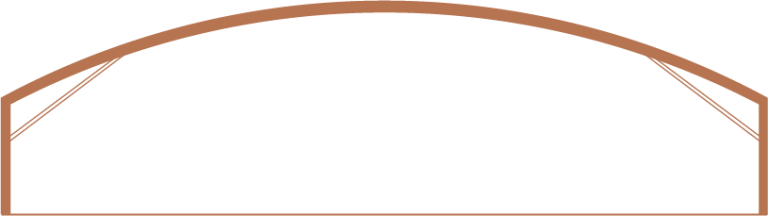

30m

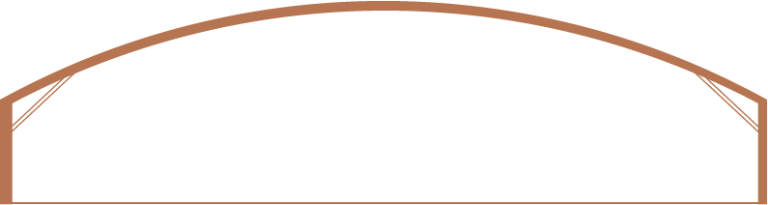

40m
Eave Height options
4m | 6m | 8m
Ready to build differently?
ENHANCE PERFORMANCE, ENCLOSURE, AND USABILITY
System accessories.

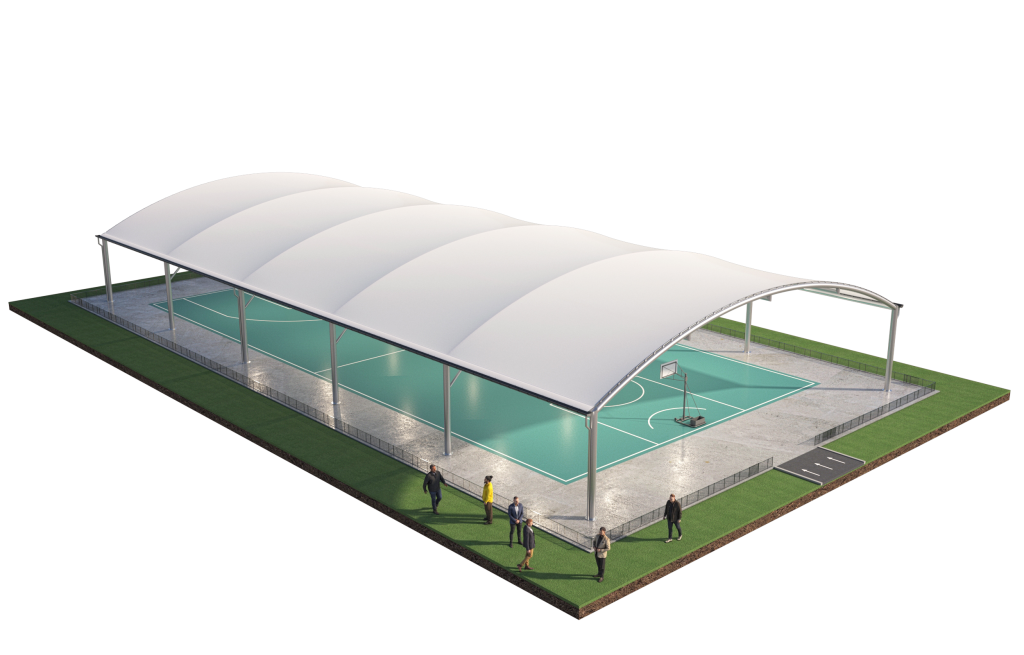

A. Open Structure (Default barrel vault)
A canopy-based configuration designed for flexible coverage, with optional accessories to enhance environmental control and usability.
guttering + downpipes
lighting + electrical
weather curtains
zip track blinds

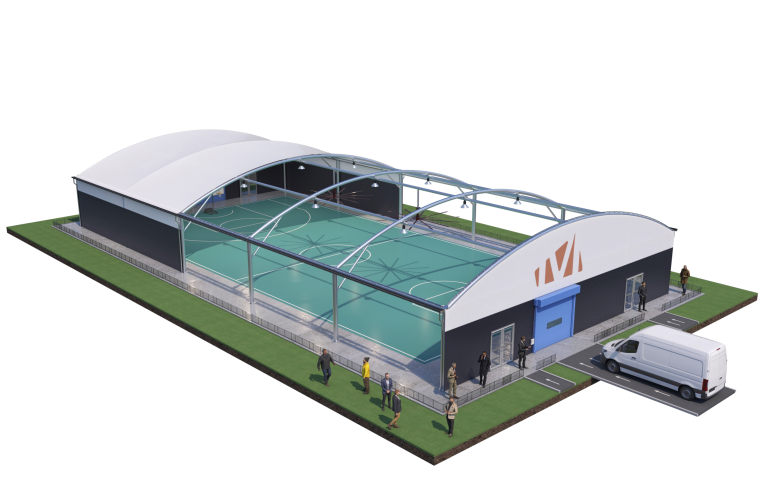

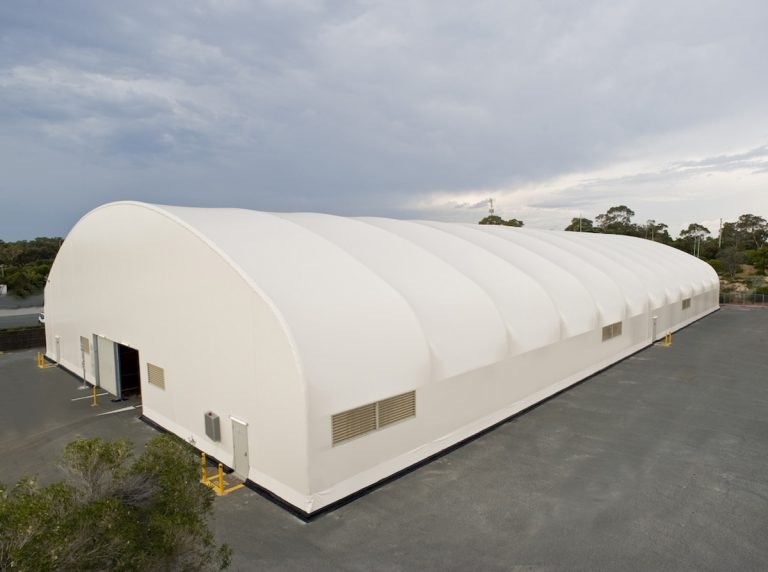

B. Enclosed Structure
A cost-effective solution for fully enclosed structures across smaller spans, where a Barrel Vault configuration can deliver enclosure and performance with reduced structural complexity. When fully enclosed, the Barrel Vault integrates with the Supa Span Adaptive accessory system, enabling expanded functionality and building performance.
For larger span requirements, Supa Span Adaptive systems provide expanded coverage and structural capability.
Personnel doors
vehicle access doors
hangar doors
ventilation fans + louvres
hardwall: metal cladding
acoustic liners
thermaskin insulation
sandwich panel insulation
fibreglass insulation

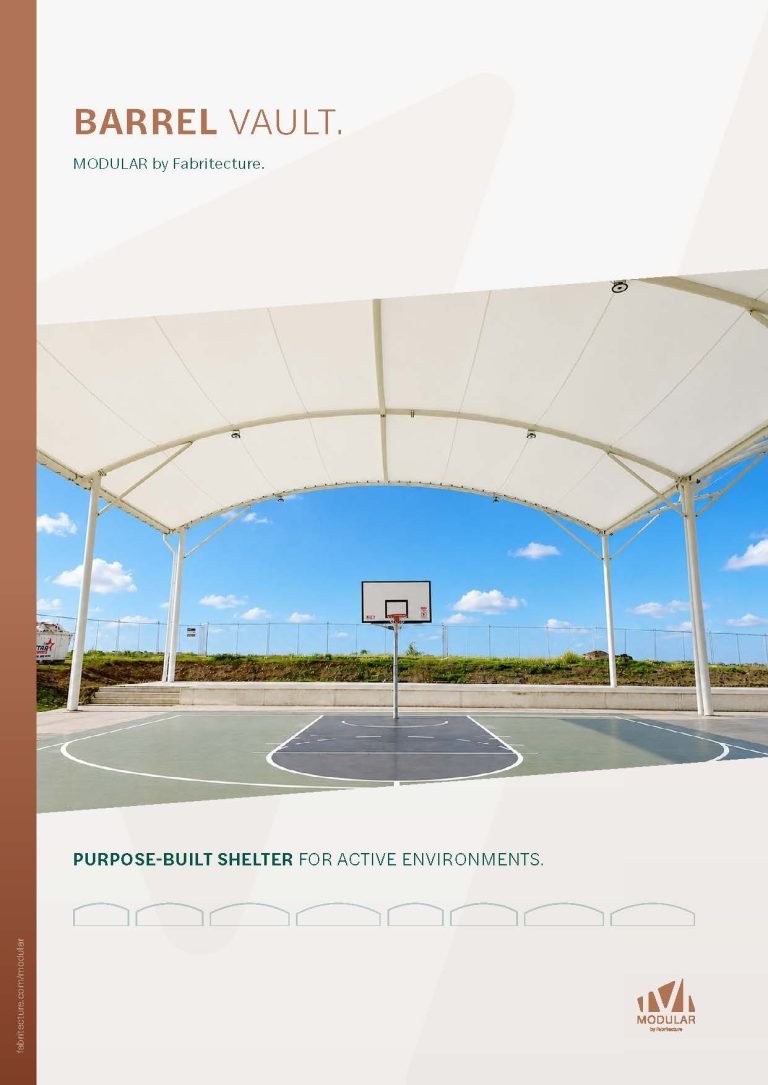

Learn more about the Barrel Vault range
